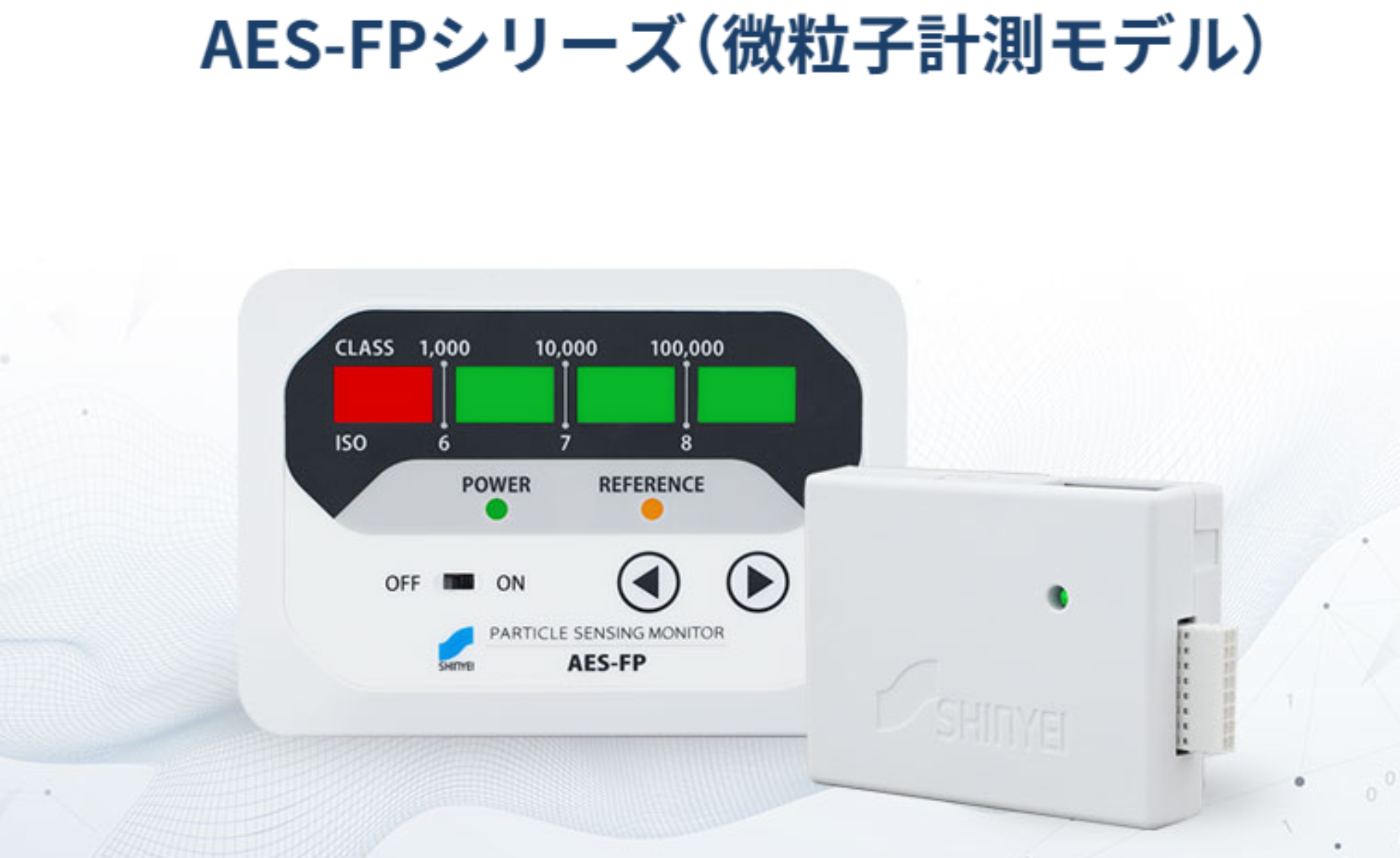

AES-FP Series
Particle Sensing Monitor/ Sensor Unit
AES-FP series can detect particles over 0.3μm (or 0.5μm) in cleanroom, semiconductor/food manufacturing process, printing process, hospital facilities, and other environment requiring cleanliness monitoring at Class1,000 to 100,000.
LED display showing cleanliness level supports visualization of suspended particles and is useful for HACCP management.
The sensor unit also can constantly detects particles over 0.3μm (or 0.5μm). The compact sensor design is suitable for incorporation into production equipment and installation in a narrow space.
Sensor unit is detachable and replaceable with new sensor unit to maintain continuous measurement during the sensor calibration.
Capable to detect suspended particles at low cost.
Easy-to-check 4 step LED display for cleanliness level Class 1,000 to 100,000.
Detect particles over
0.3μm (or 0.5μm) and over a few μm* (*reference value).
5 models available for suitable application and communication interface.
Detachable sensor unit to maintain continuous measurement during calibration.
Temperature and humidity sensor available as an option.
Key Features
5 models available for suitable application and communication interface.
For Particle Sensing Monitor, 4 types of output/communication can be selected from alarm output, Ethernet, voltage output, and Wi-Fi.
For Particle Sensor Unit, it can communicate with RS485.
Installation Example
Application
For cleanliness management of semiconductor manufacturing, food factories and hospital environments.
Problem
Product quality and work efficiency are unstable.
Countermeasure
Installation of Particle Sensing Monitor for each manufacturing area helps to monitor the frequency of particle generation constantly.
Achievement
Product quality and work efficiency is improved.
For electrical rooms or server rooms of the data center.
Problem
Breakdown of equipment in the electrical room (storage location for power supply system) due to insufficient indoor environment management occurs.
Countermeasure
Particle Sensing Monitor helps monitoring and visualizing the presence of particle generation in real-time.
Achievement
Cleaning frequency can be controlled by visualizing particles inside.
For alarm trigger when the filter of clean booth or clean bench is damaged.
Problem
Filter for the clean bench is broken during the work without noticing.
Countermeasure
Particle Sensing Monitor helps monitoring and visualizing the presence of particles in real-time.
Achievement
Monitoring particle generation in real-time helps to detect filter damage and reduce the work loss.
For improving manufacturing quality of semiconductors and precision parts.
Problem
Product defects and loss costs are increased due to foreign matter adhesion.
Countermeasure
Particle Sensing Monitor is installed for continuous monitoring of priority control points.
Achievement
Frequency of foreign matter generation is visualized and the number of defects is reduced after the countermeasure.
For status monitoring when the air conditioning system is off.
Problem
Cleanliness level is unknown when the air conditioner is stopped at night and restarted the next morning.
Countermeasure
Turning on Particle Sensing Monitor helps to know the cleanliness level when the air conditioning system is restarted.
Achievement
Visualization of cleanliness tells you when the work should be started after the air conditioning system is ON.
