用途：呼氣酒精檢測儀
Applications: Alcohol checker
驅動條件： 電熱電壓 DC0.9V± 5%
電路電壓 /DC 5V 以下
功耗： 120mW
外部濾網： 無
尺寸：φ7.6 x 13.4mm
重量： 0.6g
Standard operating condition:
Heater voltage/DC 0.9V±5%
Circuit voltage/less than DC 5V
Power consumption: 120mW
Filter: Not included
Size: φ7.6 x 13.4mm
Weight: 0.6g
SB-30性的氧化錫半導體氣體傳感器。應用獨自技術開發的超是一款對酒精有高感度以及有良好相對氣體感度特小型珠狀型構造，與原來的厚膜型相比僅有約 120mW（和本公司產品相比 )。該傳感器具有快速初期15% 的耗電穩定特性，氣體應答性，長壽命，耐中毒等優越特性，可廣泛應用于個人呼氣酒精檢測用產品中。

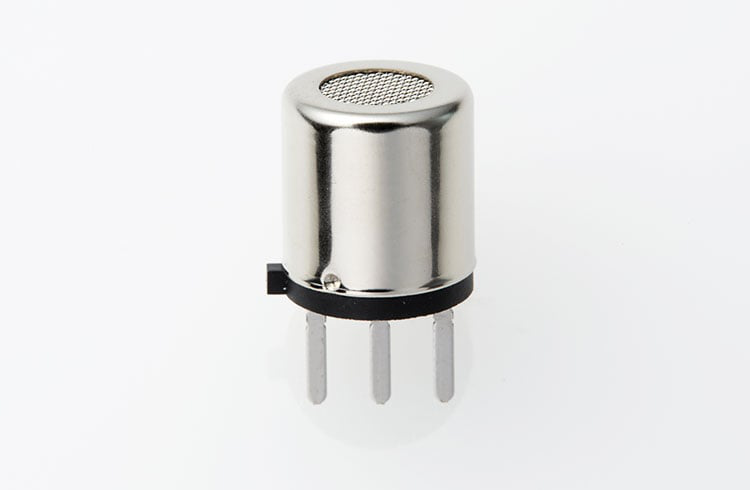

The SB-30-04 is a tin dioxide semiconductor gas sensor which has a high sensitivity to alcohol with quick response speed. This model is suitable for alcohol detection such as portable breath alcohol checker or ignition locking system in automobles.
對象氣體：VOC, 酒精，呼氣氣體
Target gas: Ethanol/VOC/Halitosis
