用途：家用氣體泄露報警器
驅動條件：電熱電壓DC0.9VX5sec.+DC0.2VX20sec.
電路電壓/DC 5v 以下
功耗：平均 34mW外部濾網：活性炭濾網
尺寸：ф10.0 x 20mm重量：
1.2g SB-500-12 是一款具有優越性能檢測一氧化碳的氧化錫半導體氣體傳感器。應用獨自技術開發的超小型珠狀型構造，可實現低功耗，高選擇性，長壽命的檢測一氧化碳?？蓮V泛適用于便攜式到固定式的 Co 檢測裝置中。
對象氣體：一氧化碳
Applications: Home gas leak detector
Standard operating condition: Heater voltage/
DC 0.9V x 5sec. + DC 0.2V x 20sec.
Circuit voltage/less than DC 5V
Power consumption: Average 34mW
Filter: Charcoal filter
Size: φ10.0 x 20mm
Weight: 1.2g

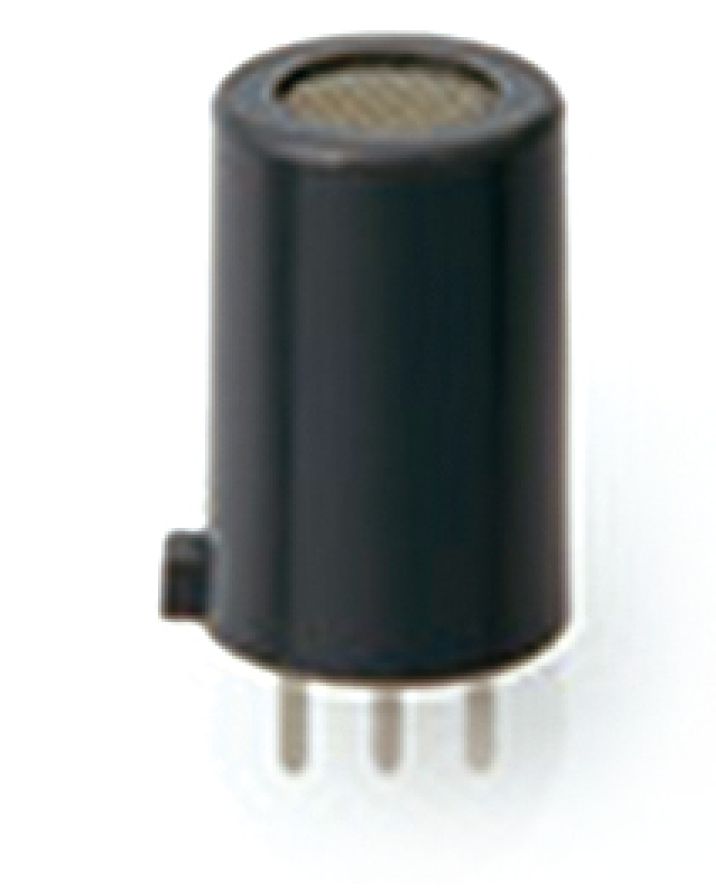

The SB-500-12 is a tin dioxide semiconductor gas sensor which has an excellent performance in CO detection.Using a mini-bead type sensing element with a periodic temperature change operation method, high sensitivity, selectively, small effect from humidity and other remarkable characteristics have been achieved. The SB-500-12 realizes the development of reliable CO detection devices.
Target gas: Carbon monoxide
