產品描述：
本一氧化碳?xì)怏w傳感器可應用于室內需要測量一氧化碳?xì)怏w濃度的場合。

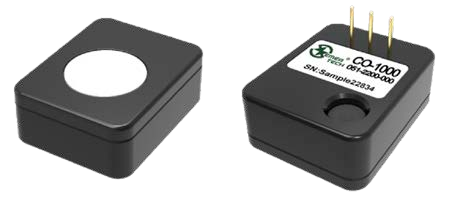

Product Description:
This carbon monoxide gas sensor is suitable for indoor applications requiring the measurement of carbon monoxide gas concentration.
| 參數 | 規格 |
| 量程 | 0 - 1000 ppm |
| 最大荷載 | 2000 ppm |
| 靈敏度 (20°C) | 0.04 + 0.01 μA/ppm |
| 響應時間 (T90) | ≤ 30 s |
| 基線 (20°C) | < ±0.2 μA |
| 基線漂移 (-20°C - 50°C) | <5 ppm |
| 分辨率 | 0.16 ppm |
| 線性度 | 線性 |
| 偏壓 | 0 mV |
| 工作溫度 | -20°C - 50°C |
| 工作壓力 | 1±0.1 標準大氣壓 |
| 工作濕度 | 15% - 90%RH(無冷凝) |
| Parameter | Specification |
| -- | -- |
| Range | 0 - 1000 ppm |
| Maximum Load | 2000 ppm |
| Sensitivity (20°C) | 0.04±0.01 μA/mm |
| Response Time (190) | ≤30s |
| Baseline (20°C) | <±0.2 μA |
| Baseline Drift(-20°C - 50°C) | <5 ppm |
| Resolution | 0.16 ppm |
| Linearity | Linear |
| Bias Voltage | 0 mV |
| Operating Temperature | -20°C - 50°C |
| Operating Pressure | 1±0.1 standard atmosphere |
| Operating Humidity | 15% - 90%RH(no condensation) |
