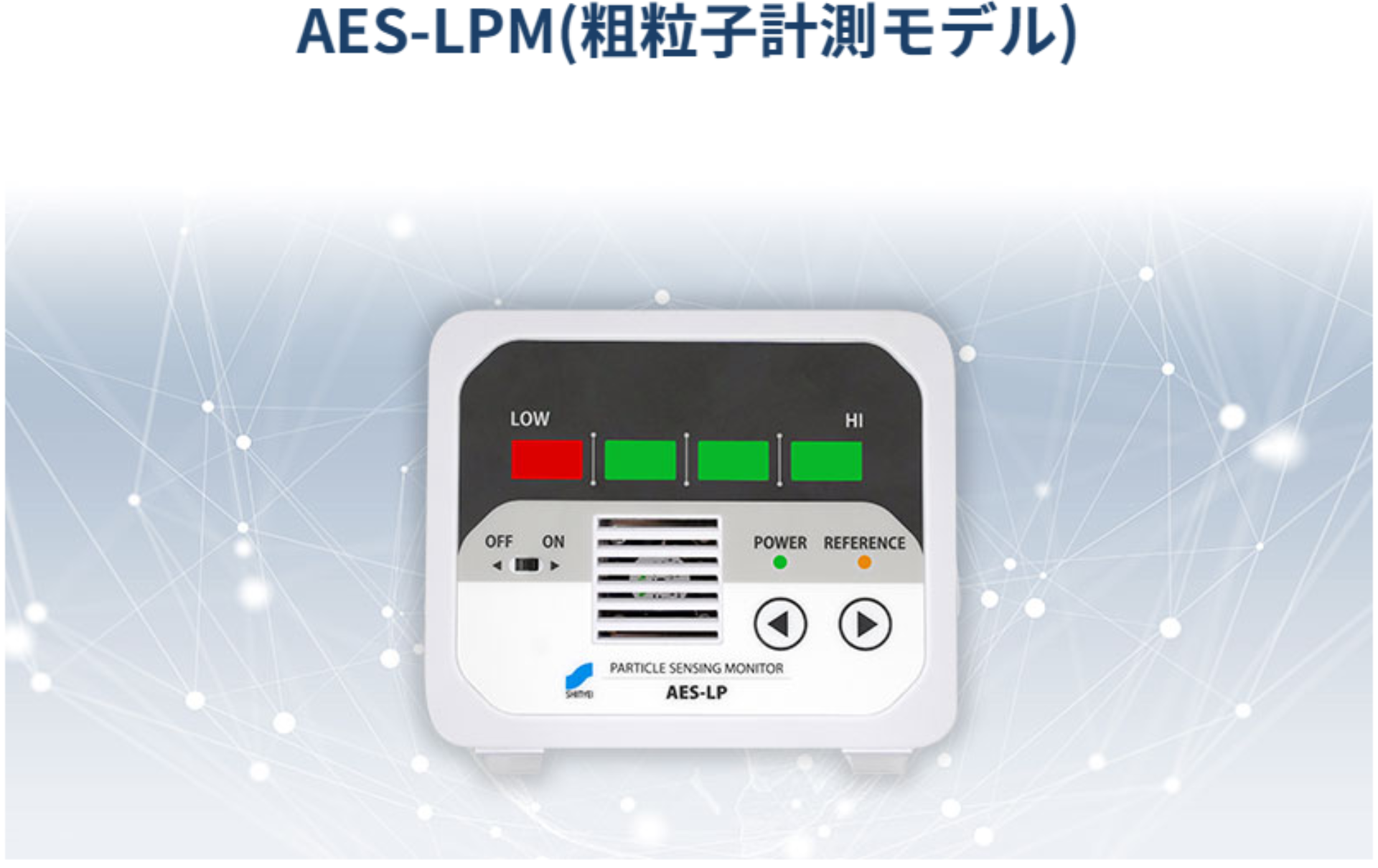

AES-LPM (For Large Particles)
It can constantly monitor particles in painting process and various manufacturing processes where large particles of 5 to 50μm are disliked.
Useful for quality improvement and defect rate reduction at low cost.
Small size and low cost.
4-level LED display for the number of large particles that fall without floating.
Detect particles of 5μm to 50μm* (*reference value).
5 different outputs or communication interfaces.
Continuous monitoring and quick notification of abnormalities.
Temperature and humidity sensor avaliable as an option.
Key Features
5 different outputs or communication interfaces.
Output/communication way can be selected from alarm output, Ethernet, voltage output, Wi-Fi and RS485.
Application
For cleanliness management of semiconductor/precision parts manufacturing process.
Problem
Product quality and work efficiency are unstable.
Countermeasure
Installation of AES-LPM for each manufacturing area helps to monitor the frequency of particle generation constantly.
Achievement
Product quality and work efficiency is improved.
For improvement of product yield and loss cost reduction in painting line.
Problem
Painting defects on car body occur due to adhesion of contaminant particles.
Countermeasure
Install AES-LPM to visualize the cleanliness level at painting line.
Achievement
Appropriate cleanliness management reduces repainting works and loss cost.
For preventing troubles and accidents of power receiving and transforming equipment.
Problem
Dielectric breakdown occurs due to dust adhering to insulation parts.
Countermeasure
Install AES-LPM into the equipment to monitor dust concentration in real time.
Achievement
It can prevent troubles and accidents of electrical equipment by replacing parts in advance.
For improvement of glass surface quality.
Problem
Product defects occur due to contaminant particles adhering to its surface.
Countermeasure
Install AES-LPM at multiple places in facility to visualize the particle generated point.
Achievement
Defect rate decreases by identifying the particle source.
For printing system control to keep its quality.
Problem
Contaminant particles adhesion occurs in mass production and causes a lot of damages.
Countermeasure
Install AES-LPM to stop the printing machine once contaminant particle is detected.
Achievement
Product defect is prevented and loss cost decreases.
