用途:空氣質量控制，汽車
Applications: Automobile-Inside air / Air quality - Air purifiers / Homeappliances / Alcohol checker
驅動條件:電熱電壓DC5V土4% 電路電壓/DC5V以下功耗:400mW無外部濾網:
尺寸:07.6x 13.4mm
重量:0.6g
Standard operating condition: Heater voltage/DC 5.0V + 4%Circuit voltage/less than DC5V
Power consumption:400mWFilter: Not included
Size: 07.6 x 13.4mm
Weight: 0.6g
SP3S-AQ2-01是一款對于檢測cO、氫氣、有機溶劑等大氣污染氣體成分具有高感度的氧化錫半導體氣體傳感器。具有快速應答，長壽命等良好特性，以及低電流，低功耗等特色。并收納于小型外殼中，價格非常低。通過使用該款傳感器，可以實現高性能空氣凈化器，換氣裝置等的自動運轉。

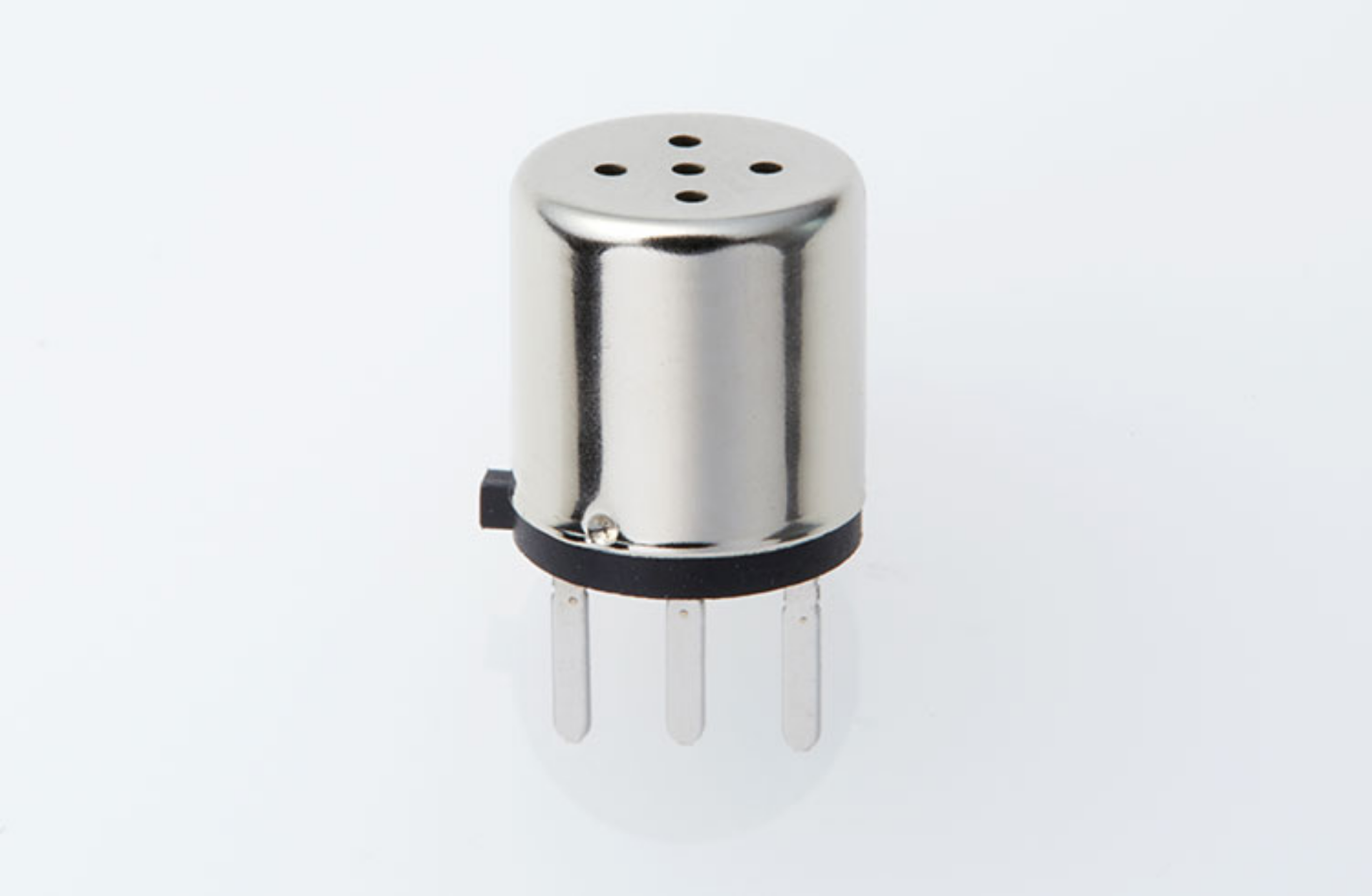

The SP3S-AQ2-01 series is a tin dioxide semi conductor gas sensorwhich has a high sensitivity to various air pollution sources(e.g.VOCs) with quick response speed. This series uses a compactplastic housing with 3 pins configuration achieving an excellent gassensing performance with low cost.This model is ideal for variousdesign of automatic air quality control systems; Ventilation Fans, airpurifiers.
對象氣體:一氧化碳/VOC/酒精
Target gas: Carbon monoxide /VOC/Alcohol
