用途：空氣質量控制，汽車
Applications：Automobile-Inside air/Air quality-Air purifiers
驅動條件：電熱電壓DC0.9V±5%電路電壓/DC5V以下
功耗：
120mW外部濾網：無
尺寸：Ф7.6 x 13.4mm
重量：0.6g
Standard operating condition：
Heater voltage/DC 0.9V±5%
Circuit voltage/less than DC 5V
Power consumption：120mW
Filter：Not included
Size：Φ7.6x 13.4mm
Weight：0.6g

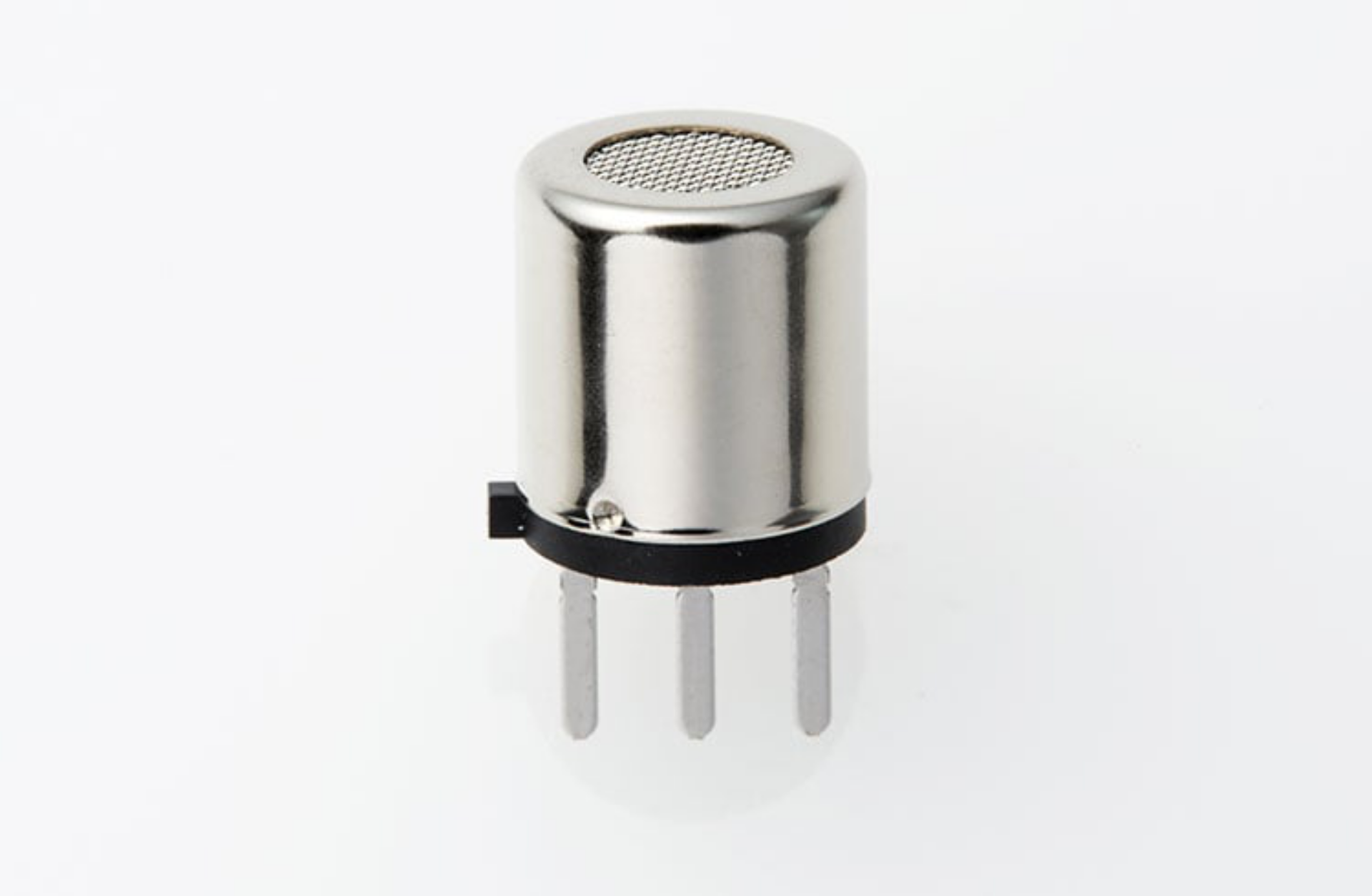

SB-AQ1 是一款對于檢測co、氫氣、有機溶劑等大氣污染氣體成分具有高感度的氧化錫半導體氣體傳感器。應用獨自技術開發的20mw（和本公司產品相比）。該傳感器具有快速應答，長壽命等良好特性，對于高性能空氣凈化器，換氣裝置等的自動運轉可發揮很好的性能。
The SB-AQ1-06 is a tin dioxide semiconductor gas sensor which has a very high sensitivity to VOCs，solvents and many other gases.This model is suitable for air quality monitoring for general applications
對象氣體：氫氣，voc，酒精
Target gas：H2/Ethanol/VOC
